Trang chủ / Standard AC Motors / Induction motor / S9I90DB-A32

S9I90DB-A32

Mã sản phẩm:

Danh mục: Induction motor

Chúng tôi là nhà phân phối chính thức các sản phẩm của Spgmotor tại thị trường Việt Nam, Quý khách có nhu cầu về các sản phẩm của Spgmotor vui lòng liên hệ trực tiếp với chúng tôi để được tư vấn nhanh hơn.

Hotline: 0974190088/Zalo

Email: vuonguoc@gmail.com





Giá: Liên hệ
MÔ TẢ SẢN PHẨM

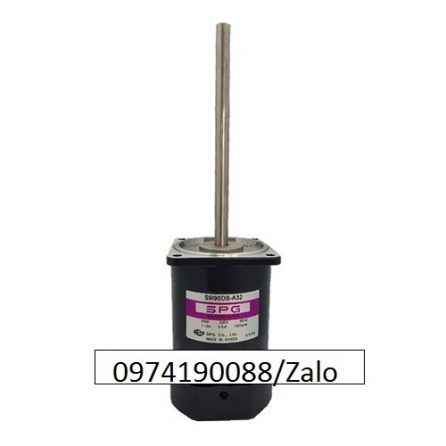

S9I90DB-A32

90W 220V 축길이 180mm 축파이 12mm SUS INDUCTION MOTOR D-CUT

1. Specification
SIZE
mm sq.
Type Pole Output Voltage Fre. Duty Rated Load Starting Torque Capacitor
Current Speed Torque
(W) (V) (Hz) (A) (rpm) (kg-cm) (N-m) (kg-cm) (N-m) (uF)

90

S9l90GA(  )
S9l90GA(  )(TP)
S9l90GA(  )CE
4 90 1 ø 110 60 Cont. 2.00 1600 5.60 0.560 5.70 0.570 25.0
S9l90GB(  )
S9l90GB(  )(TP)
S9l90GB(  )CE
4 90 1 ø 220 60 Cont. 1.00 1600 5.60 0.560 5.70 0.570 0.6
S9l90GC(  )
S9l90GC(  )(TP)
S9l90GC(  )CE
4 90 1 ø 100 50 Cont. 1.80 1300 6.90 0.690 5.00 0.500 25.0
60 2.00 1550 5.80 0.580
S9l90GD(  )
S9l90GD(  )(TP)
S9l90GD(  )CE
4 90 1 ø 200 50 Cont. 0.90 1300 6.90 0.690 5.00 0.500 6.0
60 1.00 1550 5.80 0.580
S9l90GE(  )
S9l90GE(  )CE
4 90 1 ø 100 50 Cont. 1.50 1300 6.90 0.690 5.00 0.500 25.0
60 1.80 1550 5.80 0.580
1 ø 115 60 1.80 1550 6.00 0.600 20.0
S9l90GX(  )
S9l90GX(  )CE
4 90 1 ø 220 50 Cont. 0.68 1300 6.90 0.690 4.80 0.480 5.0
1 ø 240 0.72 7.20 0.720 5.20 0.520
S9l90GU(  )
S9l90GU(  )CE
4 90 3 ø 200 50 Cont. 0.63 1300 6.90 0.690 10.60 1.060 –
60 0.60 1550 6.00 0.600 8.90 0.890
S9l90GT(  )
S9l90GT(  )CE
4 90 3 ø 220 50 Cont. 0.68 1350 6.80 0.680 13.00 1.300 –
60 0.55 1600 5.70 0.570 10.50 1.050
S9l90GS(  )

S9l90GS(  )CE

4 90 3 ø 380 50 Cont. 0.32 1300 6.80 0.680 10.55 1.055 –
60 0.30 1550 5.70 0.570 8.20 0.820
3 ø 400 50 Cont. 0.35 1300 6.90 0.690 11.70 1.170
60 0.32 1550 5.80 0.580 8.90 0.890
3 ø 415 50 Cont. 0.33 1350 6.80 0.680 12.00 1.200
60 0.29 1600 5.70 0.570 9.50 0.950
3 ø 440 50 Cont. 0.35 1350 6.90 0.690 13.30 1.330
60 0.31 1600 5.80 0.580 10.50 1.050
– Product name S9l90GE is approved UL approval that is THERMALLY PROTECTED TYPE. (UL FILE NO. E172720)
Please verify condenser capacity before use.
It cause serious damage to the product.   Please suggest using voltage correctly.
If you don’t suggest using voltage we supply 115V condenser.

– If model no. has CE, means Thermally Protected Type include TP that has approved CE MARK.
(FILE NO. E9766002E01. Approved By TÜV Rheinland)
S9l90GE()CE product distributed only 115V.

– If model no. has TP, it means THERMALLY PROTECTED TYPE of general motor include TP.
model no. S9l90GE. S9l90GX, S9l90GS has TP which Thermally Protected Type.

–  (  ) means L, H Type. L should be jointed with GEAR HEAD L, H should be jointed with GEAR HEAD H.

■ 50Hz
Model Gear Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30
rpm 500 416 300 250 200 166 150 120 100 83 75 60 50
S9KC□B()
S9KC□B( )-S
kg-cm 18.2 21.9 30.4 36.5 45.6 54.7 60.8 68.4 82.1 98.6 110 124 149
N-m 1.784 2.146 2.979 3.577 4.469 5.361 5.958 6.703 8.046 9.663 10.78 12.15 14.60
Model Gear Ratio 36 40 50 60 75 90 100 120 150 180 200
rpm 41 37 30 25 20 16 15 12 10 8 7.5
S9KC□B( )
S9KC□B( )-S
kg-cm 178 198 200 200 200 200 200 200 200 200 200
N-m 17.44 19.40 19.60 19.60 19.60 19.60 19.60 19.60 19.60 19.60 19.60
■ 60Hz
Model Gear Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30
rpm 600 500 360 300 240 200 180 144 120 100 90 72 60
S9KC□B( )
S9KC□B( )-S
kg-cm 14.6 17.5 24.3 29.2 36.5 43.7 48.6 54.8 65.7 78.8 87.6 99.0 119
N-m 1.431 1.715 2.381 2.862 3.577 4.675 4.763 5.370 6.439 7.722 8.585 9.702 11.66
Model Gear Ratio 36 40 50 60 75 90 100 120 150 180 200
rpm 50 45 36 30 24 20 18 15 12 10 9
S9KC□B( )
S9KC□B( )-S
kg-cm 143 158 198 200 200 200 200 200 200 200 200
N-m 14.01 15.48 19.40 19.60 19.60 19.60 19.60 19.60 19.60 19.60 19.60
– GEAR HEAD name □ means gear gate.

– Allow torque that jointed with GEAR HEAD.
In case of jointed with gear haed that has gear rate 1/10 mid. : TORQUE ALLOWANCE = 80kg-cm

– Rotation direction comply with

– color that is same direction with MOTOR. Others are opposite direction with MOTOR rotate direction.

– Rotate Times culculated by MOTOR’s induce rotation (50Hz : 1500rpm, 60Hz : 1800rpm) and divided by gear rate.
Actuall rotation time can be differenciated by load size. Nomally 2~20% less than measured value.

– Exclusive use for ‘L’ Type dosen’t marked to name plates.

2.Dimensions
3.Schematic Diagrams
Rotate direction is measured from motor shaft position.
S9l90GA

S9l90GC

S9l90GB

S9l90GD

CW CCW
S9l90GA(TP)
S9l90GB(TP)
S9l90GC(TP)
S9l90GD(TP)
S9l90GACE
S9l90GBCE
S9l90GE
S9l90GCCE
S9l90GDCE
S9l90GECE
CW CCW
S9l90GU S9l90GT
CW CCW
S9l90GUCE S9l90GTCE
CW CCW
S9l90GS S9l90GSCE
CW CCW
S9l90GX, S9l90GXCE
CW

S9l90GA(  ),S9l90GA(  )(TP), S9l90GA(  )CE, S9l90GB(  ),S9l90GB(  )(TP),        S9l90GB(  )CE, S9l90GC(  ),            S9l90GC(  )(TP), S9l90GC(  )CE, S9l90GD(  ),        S9l90GD(  )(TP), S9l90GD(  )CE,S9l90GE(  ),S9l90GE(  )CE,S9l90GX(  ),        S9l90GX(  )CE,S9l90GU(  ), S9l90GU(  )CE,S9l90GT(  ),S9l90GT(  )CE, S9l90GS(  ),S9l90GS(  )CE,S9l90GA,S9l90GC,S9l90GB,S9l90GD,    S9l90GA(TP), S9l90GB(TP), S9l90GC(TP),            S9l90GD(TP), S9l90GACE,   S9l90GBCE,S9l90GE,S9l90GCCE,  S9l90GDCE,   S9l90GECE,   S9l90GU,            S9l90GT,S9l90GUCE,S9l90GTCE,S9l90GS,S9l90GSCE,S9l90GX,          S9l90GXCE, 9I90GAH, S9I90GBH, S9I90GXHCE, S9I90DA, S9I90DB, S9I90DXCE, S9I90GTH, S9I90GSHCE, S9I90DT, S9I90DSCE, S9I90GAH-S12, S9090GBH-S12, S9I90GXH-S12CE, S9I90GAH-V12, S9I90GBH-V12, S9I90GXH-V12CE, S9R90GAH-E, S9I90GBH-E, S9R90GXH-ECE, S9I90GTH-E, S9I90GSH-ECE,

S9R90GAH-ES12, S9R90GBH-ES12, S9R90GXH-ES12CE, S9I90GAH-T, S9I90GBH-T, S9I90GXH-TCE, S9I90GTH-T, S9I90GSH-TCE,

S9I90GAH,S9I90GBH,S9I90GXHCE,S9I90GTH,S9I90GSHCE,S9I90DA,S9I90DB,S9I90DXCE,S9I90DT,S9I90DSCE,S9I90KB,S9I90KT,S9I90KSCE,S9I90GAH-S12,S9090GBH-S12,S9I90GXH-S12CE,S9I90GAH-V12,S9I90GBH-V12,S9I90GXH-V12CE,S9I90GAH-T,S9I90GBH-T,S9I90GXH-TCE,S9I90GTH-T,S9I90GSH-TCE,S9R90GAH-E,S9R90GBH-E,S9R90GXH-ECE,S9I90GTH-E,S9I90GSH-ECE,S9R90GAH,S9R90GBH,S9R90GXHCE,
