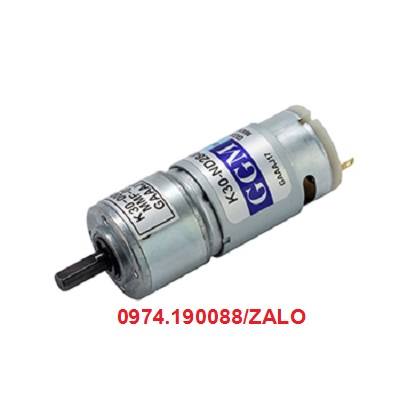

K42-0024-KD4266T1
Mã sản phẩm:
Danh mục: List GGM 3
Chúng tôi là nhà phân phối chính thức và duy nhất các sản phẩm của GGMMOTOR tại thị trường Việt Nam, Quý khách có nhu cầu về các sản phẩm của GGMMOTOR vui lòng liên hệ trực tiếp với chúng tôi để được tư vấn nhanh hơn. Hotline: 0974190088/Zalo
Email: vuonguoc@gmail.com
MÔ TẢ SẢN PHẨM
K42-0024-KD4266T1
| DIMENSIONS |
| MOTOR PERFORMANCE DATA | |||||||||
| Model | Voltage (DC) |
NO LOAD | AT MAX. EFF. | STALL | WEIGHT (g) |
||||
| A | rpm | gf·cm | A | rpm | A | kgf·cm | |||
| K42-ND4266T1 | 12V | 1 | 7000 | 520 | 3.8 | 5900 | 24 | 3.8 | 350 |
| K42-ND4266T2 | 24V | 0.5 | 7000 | 520 | 1.8 | 5900 | 13 | 4.3 | |
| 최대 정격 부하시 사양 | ||||||
| (비율) | DC 12V 5900rpm | DC 24V 5900rpm | ||||
| GEAR RATIO | 모델명 | rpm | kgf·cm | 모델명 | rpm | kgf·cm |
| 1/4 | K42-0004-ND4266T1 | 1470 | 1.7 | K42-0004-ND4266T2 | 1470 | 1.7 |
| 1/14 | K42-0014-ND4266T1 | 420 | 4.9 | K42-0014-ND4266T2 | 420 | 4.9 |
| 1/17 | K42-0017-ND4266T1 | 346 | 5.9 | K42-0017-ND4266T2 | 346 | 5.9 |
| 1/24 | K42-0024-ND4266T1 | 245 | 8.4 | K42-0024-ND4266T2 | 245 | 8.4 |
| 1/49 | K42-0049-ND4266T1 | 120 | 14 | K42-0049-ND4266T2 | 120 | 14 |
| 1/61 | K42-0061-ND4266T1 | 96 | 17 | K42-0061-ND4266T2 | 96 | 17 |
| 1/84 | K42-0084-ND4266T1 | 70 | 24 | K42-0084-ND4266T2 | 70 | 24 |
| 1/104 | K42-0104-ND4266T1 | 57 | 29 | K42-0104-ND4266T2 | 57 | 29 |
| 1/144 | K42-0144-ND4266T1 | 41 | 30 | K42-0144-ND4266T2 | 41 | 30 |
| 1/212 | K42-0212-ND4266T1 | 28 | 30 | K42-0212-ND4266T2 | 28 | 30 |
| 1/263 | K42-0263-ND4266T1 | 22 | 30 | K42-0263-ND4266T2 | 22 | 30 |
| 1/294 | K42-0294-ND4266T1 | 20 | 30 | K42-0294-ND4266T2 | 20 | 30 |
| 1/504 | K42-0504-ND4266T1 | 11.7 | 30 | K42-0504-ND4266T2 | 11.7 | 30 |
| 1/624 | K42-0624-ND4266T1 | 9.4 | 30 | K42-0624-ND4266T2 | 9.4 | 30 |
| 1/720 | K42-0720-ND4266T1 | 8.2 | 30 | K42-0720-ND4266T2 | 8.2 | 30 |
| 1/864 | K42-0864-ND4266T1 | 6.8 | 30 | K42-0864-ND4266T2 | 6.8 | 30 |
| 1/1062 | K42-1062-ND4266T1 | 5.5 | 30 | K42-1062-ND4266T2 | 5.5 | 30 |
| 1/1470 | K42-1470-ND4266T1 | 4 | 30 | K42-1470-ND4266T2 | 4 | 30 |
| 1/2500 | K42-2500-ND4266T1 | 2.35 | 30 | K42-2500-ND4266T2 | 2.35 | 30 |
| 1/3000 | K42-3000-ND4266T1 | 1.96 | 30 | K42-3000-ND4266T2 | 1.96 | 30 |
| 1/3600 | K42-3600-ND4266T1 | 1.63 | 30 | K42-3600-ND4266T2 | 1.63 | 30 |
Một số model bán chạy:
K42-ND4266T1, K42-ND4266T2, K42-0004-ND4266T1, K42-0014-ND4266T1, K42-0017-ND4266T1, K42-0024-ND4266T1, K42-0049-ND4266T1, K42-0061-ND4266T1, K42-0084-ND4266T1, K42-0104-ND4266T1, K42-0144-ND4266T1, K42-0212-ND4266T1, K42-0263-ND4266T1, K42-0294-ND4266T1, K42-0504-ND4266T1, K42-0624-ND4266T1, K42-0720-ND4266T1, K42-0864-ND4266T1, K42-1062-ND4266T1, K42-1470-ND4266T1, K42-2500-ND4266T1, K42-3000-ND4266T1, K42-3600-ND4266T1, K42-0004-ND4266T2, K42-0014-ND4266T2, K42-0017-ND4266T2, K42-0024-ND4266T2, K42-0049-ND4266T2, K42-0061-ND4266T2, K42-0084-ND4266T2, K42-0104-ND4266T2, K42-0144-ND4266T2, K42-0212-ND4266T2, K42-0263-ND4266T2, K42-0294-ND4266T2, K42-0504-ND4266T2, K42-0624-ND4266T2, K42-0720-ND4266T2, K42-0864-ND4266T2, K42-1062-ND4266T2, K42-1470-ND4266T2, K42-2500-ND4266T2, K42-3000-ND4266T2, K42-3600-ND4266T2, K42-KD4266T1, K42-KD4266T2, K42-0004-KD4266T1, K42-0014-KD4266T1, K42-0017-KD4266T1, K42-0024-KD4266T1, K42-0049-KD4266T1, K42-0061-KD4266T1, K42-0084-KD4266T1, K42-0104-KD4266T1, K42-0144-KD4266T1, K42-0212-KD4266T1, K42-0263-KD4266T1, K42-0294-KD4266T1, K42-0504-KD4266T1, K42-0624-KD4266T1, K42-0720-KD4266T1, K42-0864-KD4266T1, K42-1062-KD4266T1, K42-1470-KD4266T1, K42-2500-KD4266T1, K42-3000-KD4266T1, K42-3600-KD4266T1, K42-0004-KD4266T2, K42-0014-KD4266T2, K42-0017-KD4266T2, K42-0024-KD4266T2, K42-0049-KD4266T2, K42-0061-KD4266T2, K42-0084-KD4266T2, K42-0104-KD4266T2, K42-0144-KD4266T2, K42-0212-KD4266T2, K42-0263-KD4266T2, K42-0294-KD4266T2, K42-0504-KD4266T2, K42-0624-KD4266T2, K42-0720-KD4266T2, K42-0864-KD4266T2, K42-1062-KD4266T2, K42-1470-KD4266T2, K42-2500-KD4266T2, K42-3000-KD4266T2, K42-3600-KD4266T2, GPA-C, GPA-U, GSA-C, GSA-U, GUA-C, GUA-U, GUB-20-C, GUB-C-200, GUD-C, GUD-U, GUL-100-2, GUL-50-2, K6BH20NC, K6DS6N3, K6G□B(C), K6G100B, K6G9C, K6IG6NC(-T), K6IG6NC-SP, K6IG6NC-SU, K6IS6NU(-T), K6IS6NU-SP, K6IS6NU-SU, K6LH30N2, K6RG6NC(-T), K6RG6NC-B, K6RG6NC-D, K6RG6NC-SP, K6RG6NC-SU, K6RS6NU(-T), K6RS6NU-B, K6RS6NU-D, K6RS6NU-SP, K6RS6NU-SU, K7DS15N3, K7G□B(C), K7G100B, K7G9C, K7IG15NC(-T), K7IG15NC-SP, K7IG15NC-SU, K7IS15NU(-T), K7IS15NU-SP, K7IS15NU-SU, K7RG15NC(-T), K7RG15NC-B, K7RG15NC-D, K7RG15NC-SP, K7RG15NC-SU, K7RS15NU(-T), K7RS15NU-B, K7RS15NU-D, K7RS15NU-SP, K7RS15NU-SU, K8DS40N3, K8G□B(C), K8G□BRH, K8G□BRS, K8G100B, K8G100BRH, K8G100BRS, K8G9BRH, K8G9BRS, K8G9C, K8IG25NC(-T-T5), K8IG25NC-SP, K8IG25NC-SU, K8IG25NH-B, K8IS25NU-SP, K8IS25NU-SU, K8IS25NZ(-T-T5), K8RG25NC(-T-T5), K8RG25NC-D, K8RG25NC-SP, K8RG25NC-SU, K8RS25NU(-T-T5), K8RS25NU-B, K8RS25NU-D, K8RS25NU-SP, K8RS25NU-SU, K9B-M8, K9BS90NC, K9DS40N3, K9DS90N3, K9G□B(C), K9G100B, K9G40NC(-T-T5), K9G9C, K9IG120FC(-T-T5), K9IG150FH(-T-T5), K9IG180FC(-T-T5), K9IG200FH(-T-T5), K9IG40NC-SP, K9IG40NC-SU, K9IG40NH-B, K9IG60FC(-T-T5), K9IG90FC(-T-T5), K9IP120FC(-T-T5), K9IP120FC-SP, K9IP150FH(-T-T5), K9IP150FH-B, K9IP180FC(-T-T5), K9IP180FC-SP, K9IP180FC-SU, K9IP200FH(-T-T5), K9IP200FH-B, K9IP60FC(-T-T5), K9IP60FC-SP, K9IP60FC-SU, K9IP60FH-B, K9IP90FC(-T-T5), K9IP90FC-SP, K9IP90FC-SU, K9IP90FH-B, K9IS120FU(-T-T5), K9IS120FU-SP, K9IS150FZ(-T-T5), K9IS150FZ-B-C50, K9IS150FZ-C50(-T-T5), K9IS180FU(-T-T5), K9IS180FU-SP, K9IS180FU-SU, K9IS200FZ(-T-T5), K9IS200FZ-B, K9IS40NU-SP, K9IS40NU-SU, K9IS60FU-SP, K9IS60FU-SU, K9IS60FZ(-T-T5), K9IS90FU-SP, K9IS90FU-SU, K9IS90FZ(-T-T5), K9LS100N2, K9P100B, K9P100BF, K9P100BRH, K9P100BRS, K9P100BU, K9P100BUF, K9P9B, K9P9BF, K9P9BRH, K9P9BRS, K9P9BU, K9P9BUF, K9RG40NC(-T-T5), K9RG40NC-D, K9RG40NC-SP, K9RG40NC-SU, K9RG60FC(-T-T5), K9RG90FC(-T-T5), K9RP120FC(-T-T5), K9RP120FC-B, K9RP120FC-D, K9RP120FC-SU, K9RP180FC(-T-T5), K9RP180FC-B, K9RP180FC-D, K9RP180FC-SU, K9RP60FC(-T-T5), K9RP60FC-D, K9RP60FC-SP, K9RP60FC-SU, K9RP90FC(-T-T5), K9RP90FC-D, K9RP90FC-SP, K9RP90FC-SU, K9RS120FU(-T-T5), K9RS120FU-B, K9RS120FU-D, K9RS120FU-SU, K9RS180FU(-T-T5), K9RS180FU-B, K9RS180FU-D, K9RS180FU-SU, K9RS40NU(-T-T5), K9RS40NU-B, K9RS40NU-D, K9RS40NU-SP, K9RS40NU-SU, K9RS60FU(-T-T5), K9RS60FU-B, K9RS60FU-D, K9RS60FU-SP, K9RS60FU-SU, K9RS90FU(-T-T5), K9RS90FU-B, K9RS90FU-D, K9RS90FU-SP, K9RS90FU-SU, K9S40NZ(-T-T5), KBEW-1, KBEW-5, KE-05, KE-30, KLEW-15, KVR10KH, KVR20KH,
K42-0024-KD4266T1, K42-0024-KD4266T1, K42-0024-KD4266T1, K42-0024-KD4266T1, K42-0024-KD4266T1, K42-0024-KD4266T1
